KT SOLAR - DC Power Link,

Design Registered & Innovated by KT Cable Accessories, the New Innovative DC Power Link is the modern alternative 4 Way Power Source for 50Amp Applications. Designed to take camping, install in the rear of a 4WD, Mount to a wall in the control panel of your boat, install in a caravan or motorhome, or for simple use outdoors around your home.

The DC Power Link features 4 x Input/Outputs which can be used as either. Simply connect a Power Source (example; 12V or 24V Battery) to the chosen Input, and use remaining free Outputs to connect 12V or 24V devices.

The DC Power Link can be thought of as your new 50Amp Power Board with extra features to support USB device charging & powering (USB Inputs rated to 2.1Amp and 1Amp (3.1Amp total) at any one-time). The unit is rated to handle up to 50Amps total, and when using all 4 circuits, (with a single power input) each output is rated to 25Amps Maximum.

Features:

• LED Indicator to show live circuit once input has been connected
• 4 Mounting Points allow easy and secure mounting
• Stainless steel hardware included
• Connects with 50Amp heavy duty connectors (grey, black, red, blue)
• Warning (Not suitable for mounting in vehicle engine bays)

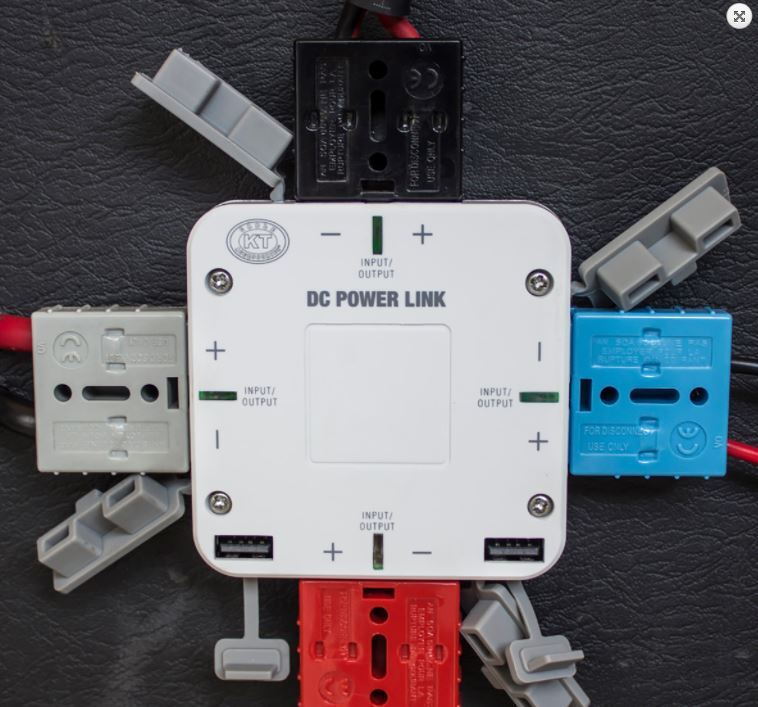

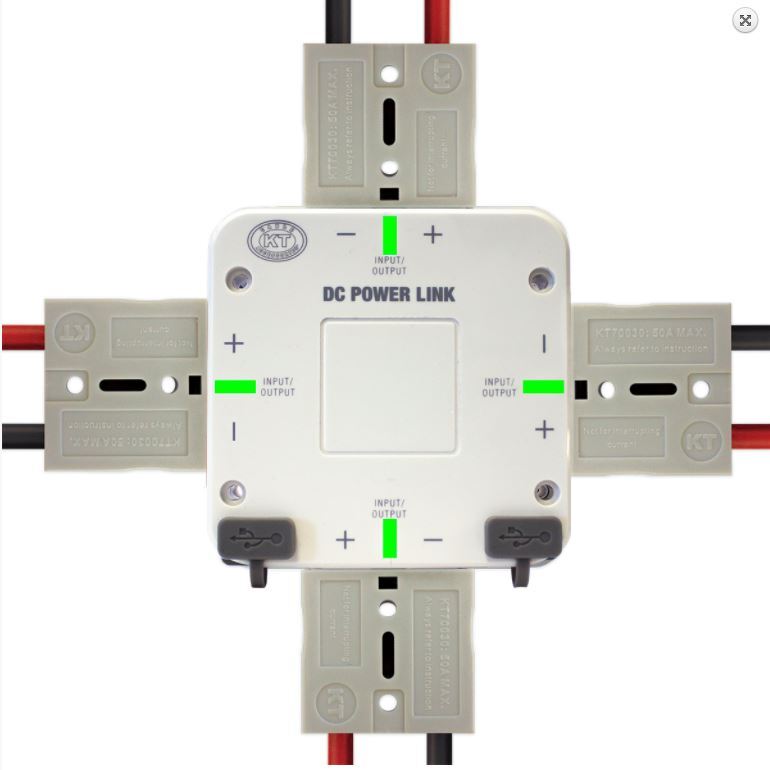

Components of the DC Power Link:

• 1. Dustproof Covers
• 2. 50Amp Heavy Duty Connector Inputs/Outputs
• 3. Mounting Points for securing to surface
• 4. USB Inputs

Specifications:

• Suitable for 12-24V Operations
• Single input rated to 50Amp draw
• Each Output rated to 25Amps (50Amp total) at any one-time
• 2.1Amp and 1Amp USB Outputs (3.1Amp total) at any one-time
• Dimensions: 86mm (L) x 86mm (W) x 22mm (H)
• Housing manufactured from durable UV stabilised polycarbonate/ABS
• Dustproof and Splashproof
