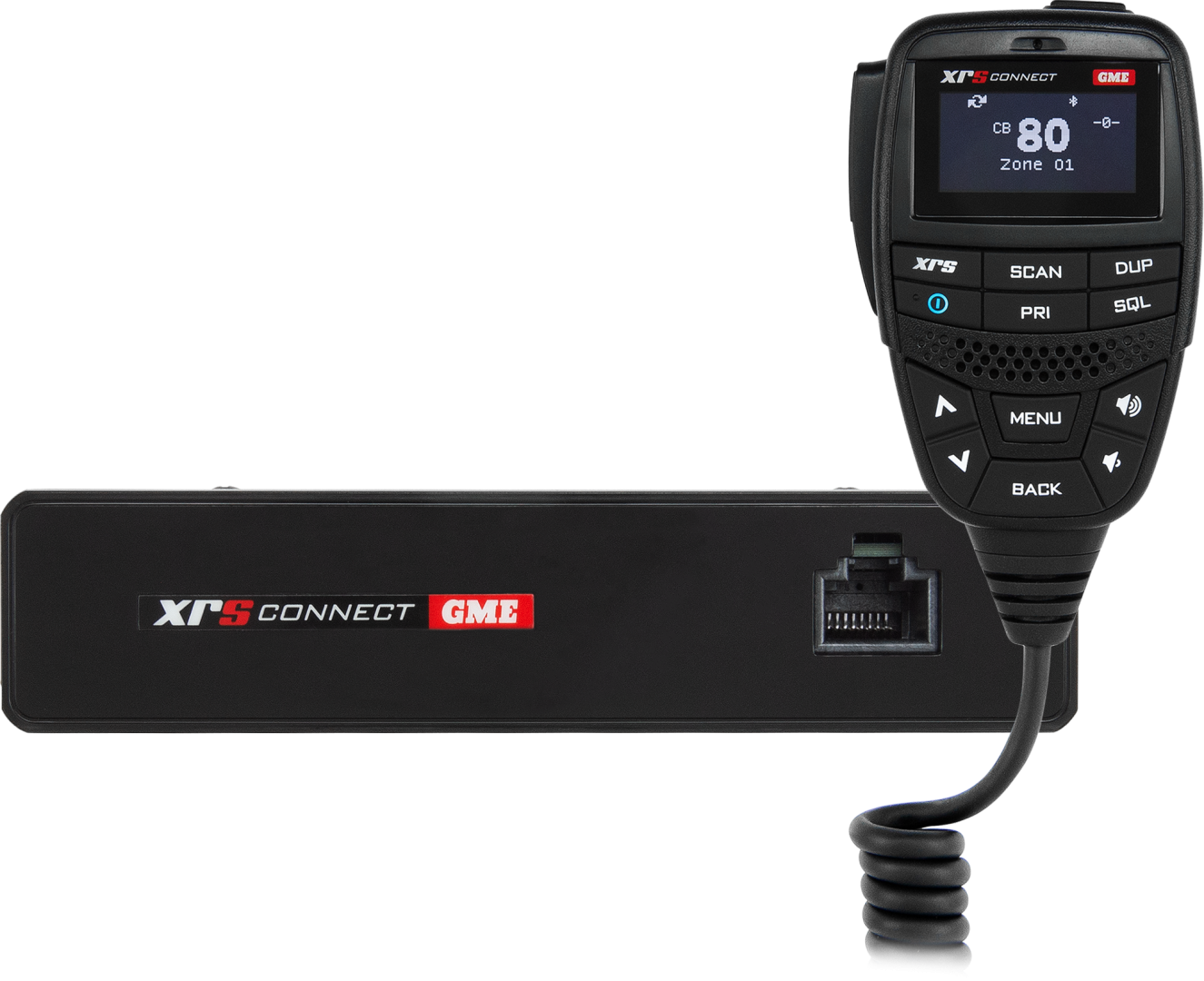

GME XRS CONNECT COMPACT UHF CB RADIO (XRS-370C)

GME XRS CONNECT COMPACT UHF CB RADIO (XRS-370C)

SKU: MPWR-21183

$589.00

Description

GME XRS CONNECT COMPACT UHF CB RADIO (XRS-370C)

The XRS-370C is an Australian made radio platform purposefully designed to be smart, rugged, and adaptable.

Enabled by Bluetooth wireless technology, the XRS-370C features in-app control and instant access to the entire Australian and New Zealand registered analogue frequency database.

Accompanied by a professional grade speaker microphone, customisable buttons and a high-contrast OLED screen, the XRS-370C is a must have for users seeking cutting edge features and quality performance.

Featuring:

  • Die-cast metal chassis with built-in speaker
  • Class-leading 2 watt front-facing speaker
  • User customisable buttons
  • Magnetic microphone mount
  • 5 year warranty
  • Australian made design and manufacture

Included in the box:

  • XRS Connect UHF CB Radio (XRS-370C)
  • Professional-grade speaker microphone (MC664B-M)
  • Magnetic microphone mounting bracket (MB207)
  • Microphone extension lead (LE040)
  • Microphone extension adapter kit (AD008)
  • 12V DC power lead (LE09)
  • Mounting bracket
  • Mounting hardware
  • Quick start guide

Warranty

5 year warranty. Please refer to GME's warranty terms and conditions.
https://www.gme.net.au/au/warranty-period

Specifications

GENERAL

Compliant Specification
Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service.
Frequency Range TX
476.425-477.4125 MHz
Number of Channels
80
Channel Spacing
12.5 kHz
Operation Mode
Simplex or half Duplex with repeater talk around.
Scanning Speed
25 ms per channel (40 channels per second)
Antenna Impedance
50 Ohms nominal
Nominal Battery Voltage
12 volts DC
Operating Voltage Range
10-16 volts DC
Battery Polarity
Negative Earth
Standard Test Voltage
13.8 volts DC
Overvoltage Protection
30 volts DC max. At 18 volts DC the RF power is reduced, and the words ‘Hi DC’ flash.
Reverse Voltage Protection
Diode Crowbar
Overcurrent Protection
In-line 2 amp fuse
Operating Temperature
-10°C to 60°C
Zones
8 (50 channels per zone)
Scan lists
3

TRANSMITTER

RF Output
5 watts
Spurious Emission
< - 70 dBc
Frequency Error
< ± 1.5 kHz
Modulation
FM
Maximum Deviation
< ± 2.5 kHz at + 20 dB limiting
Transmit Frequency Response
+6 dB per octave 300 Hz to 3 kHz +1-3 dB
Demodulated Audio Signal to Noise
> 45 dB unweighted
Current Consumption
1.5 amps with 50 Ohms termination

RECEIVER

Intermediate Frequencies
38.85 MHz, 450 kHz
Sensitivity
- 122 dBm for 12 dB SINAD unweighted
Selectivity
- 6 dB at + 3.5 kHz, ‑ 60 dB at ± 12.5 kHz
Intermodulation Immunity
-72 dB
Blocking Immunity
-98 dB
Spurious Response Immunity
70 dB
Audio Output Power
3 watts average into 4 Ohms
Audio Signal to Noise
> 45 dB unweighted
Current consumption
< 175 mA muted 750 mA Full volume
Conducted Spurious Emission
< - 70 dBm

MECHANICAL SPECIFICATIONS

Dimensions
29 (H) x 128 (L) x 117 (D) mm
Weight
450 grams
Antenna
SO239 panel socket
External Speaker
3.5 mm mono jack
Microphone Port
6 Way telephone style with rubber strain relief

OTHER

Display type
OLED
SKU MPWR-21183
Brand GME
Shipping Weight 1.0000kg
Shipping Width 0.250m
Shipping Height 0.250m
Shipping Length 0.300m
Shipping Cubic 0.018750000m3
Unit Of Measure ea
