REDARC 24V 20A Low Voltage Under Bonnet DC Battery Charger

REDARC 24V 20A Low Voltage Under Bonnet DC Battery Charger

SKU: MPWR-58496

$744.30 RRP $827.00

Description

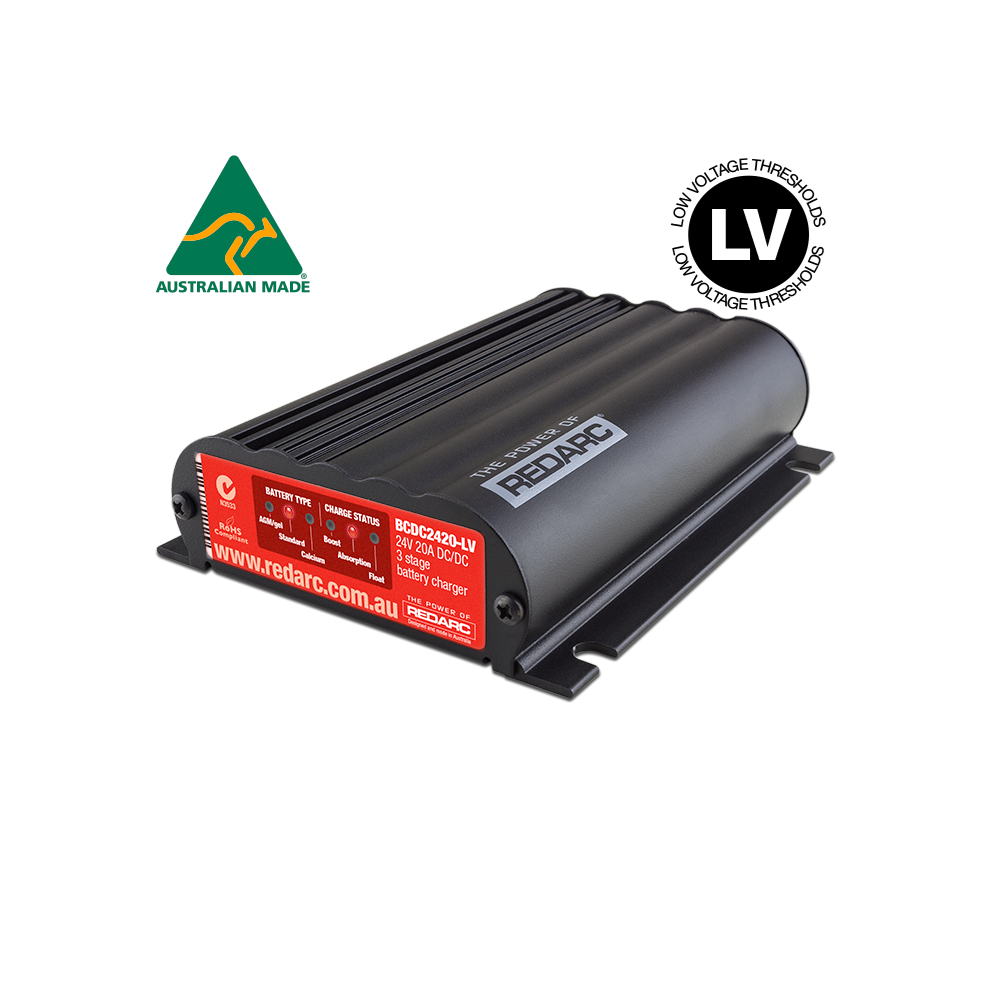

REDARC 24V 20A Low Voltage Under Bonnet DC Battery Charger (BCDC2420-LV)

The BCDC2420-LV is a 24 Volt, 20 Amp low voltage in-vehicle DC charger featuring technology designed to charge all major lead acid batteries. Suitable for vehicles fitted an an ECU-controlled variable voltage alternator, the BCDC2420-LV is fully potted, making it ideal for the high heat, dust, and vibration commonly experienced under bonnet. Operates from a vehicle input between 9 and 32 Volts DC.

Features:

Multi-stage DC to DC battery charging
MPPT solar regulator
Start battery isolator
Fully sealed design
AGM, gel, calcium content, VRLA and standard lead acid battery charging

Specifications:

Input (operating) voltage: 9-32VDC

Input charge: vehicle or solar

Installation type: in-cabin or under bonnet

Output current rating: 20A, 20A

Maximum charging voltage: 30.6V

Input fuse rating: 50A

Output fuse rating: 30A

Standby current draw: <50mA

Output system voltage: 24VDC

Output power: 600W

Type approval: E and CE

Warranty

2 year warranty.

Please refer to REDARC's warranty terms and conditions.

https://www.redarc.com.au/warranty

Specifications

SKU	MPWR-58496
Brand	REDARC
Shipping Weight	1.0000kg
Shipping Width	0.150m
Shipping Height	0.040m
Shipping Length	0.200m
Shipping Cubic	0.001200000m3
