TRED QUICK RELEASE MOUNTING PINS (113MM) (PAIR)

TRED QUICK RELEASE MOUNTING PINS (113MM) (PAIR)

Please note: these mounting pins will accommodate:

• 4 x TRED PRO, HD, or GT boards stacked; or
• 2 x TRED 1100 or 800 boards stacked; or
• Other branded recovery boards (with a stack height range of 22-80mm)

The TRED Threaded Pins are not compatible with the TRED Quick Release Mounting Pin heads.

The TRED Quick Release Mounting Pins are designed to easily and securely mount your recovery boards to your vehicle, trailer, or caravan. The unique design will mount up to four TRED GT, HD, or PRO model recovery boards, or two of the TRED 800/1100 model recovery boards while allowing the option of a padlock for added security.

Included in box:

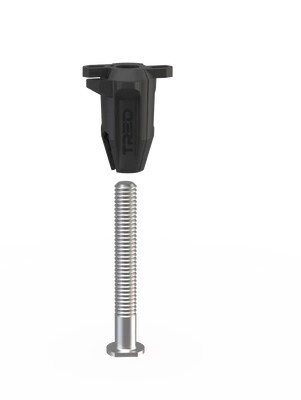

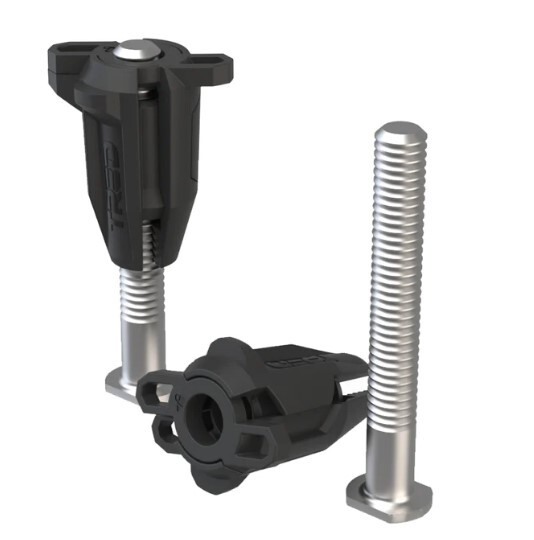

• 2 x TRED 113mm Mounting Pins
• 2 x TRED Quick Release Handles
• 2 x Stainless Steel M6 Button Socket Head Cap Bolts
• 2 x Stainless Steel M6 Washers (12mm)
• 2 x Stainless Steel M6 Washers (17mm)
• 2 x Rubber Spacers (Grommets)

Features:

• M6 threaded base design - With the M6 threaded base design, you're able to secure these pins easily onto a variety of surfaces. Depending on your installation, mounting location, and brackets used, you may require four pins for optimum security and stability. For vertical, side, or anything other than flat mounting, we highly recommend using two sets of Mounting Pins
• Lockable design - Lockable with a padlock to safely secure your recovery boards. TRED recommends a 30mm padlock with a 5mm shackle
• Compatible with other branded recovery boards

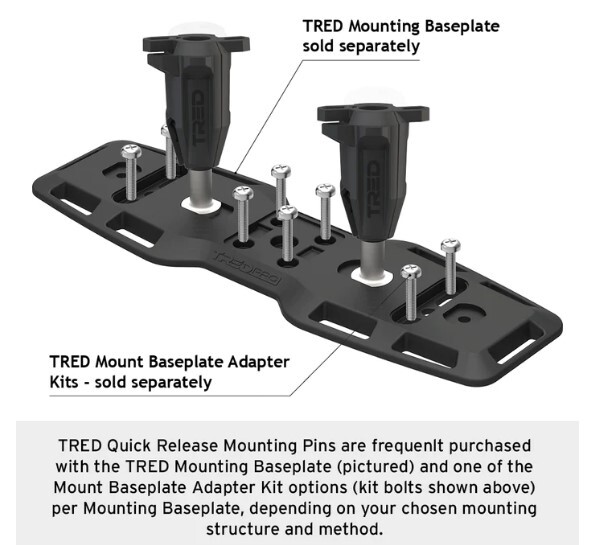

• Pairs with the TRED Mounting Baseplate - When paired with a TRED Mounting Baseplate (sold separately), the installation is more secure and easier to mount due to the pin location slots, recesses and covers within the Baseplate design
