Warn Evo 10 Wire Rope Winch

WARN EVO 10 WINCH - 10,000PD STEEL CABLE

12v Recovery Winch 27m Wire Rope w/ 2in1 Wireless Remote

SKU: MPWR-49074

$989.10 RRP $1,099.00

Description

Ideal weight capacity and line speed for 1/2-ton pickups, Jeeps, and larger SUVs. The VR EVO 10 and 10-S feature IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a state-of-the-art, two-in-one remote for added ease of use and versatility. With it's fast line-speed and lower amp draw, the VR EVO series of winches are the hardest-working standard-duty winches we've ever made, with tactical styling that looks great up front and at a price that won't pull you out of your budget.

Features:

• A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw

• IP68-rated waterproof winch construction keeps the elements out

• High-performance Albright contactor delivers maximum reliability

• Control packs can be relocated for low-profile installations

• Durable, one-piece cast-aluminum tie-plate for added strength and durability

• Two-in-one remote with wired AND wireless options for ease of use and versatility

• Available with wire or synthetic rope

• Limited lifetime warranty for mechanical parts and 7 years on the electrical

• Designed, engineered, and tested by WARN engineers in the U.S.A.

Specifications:

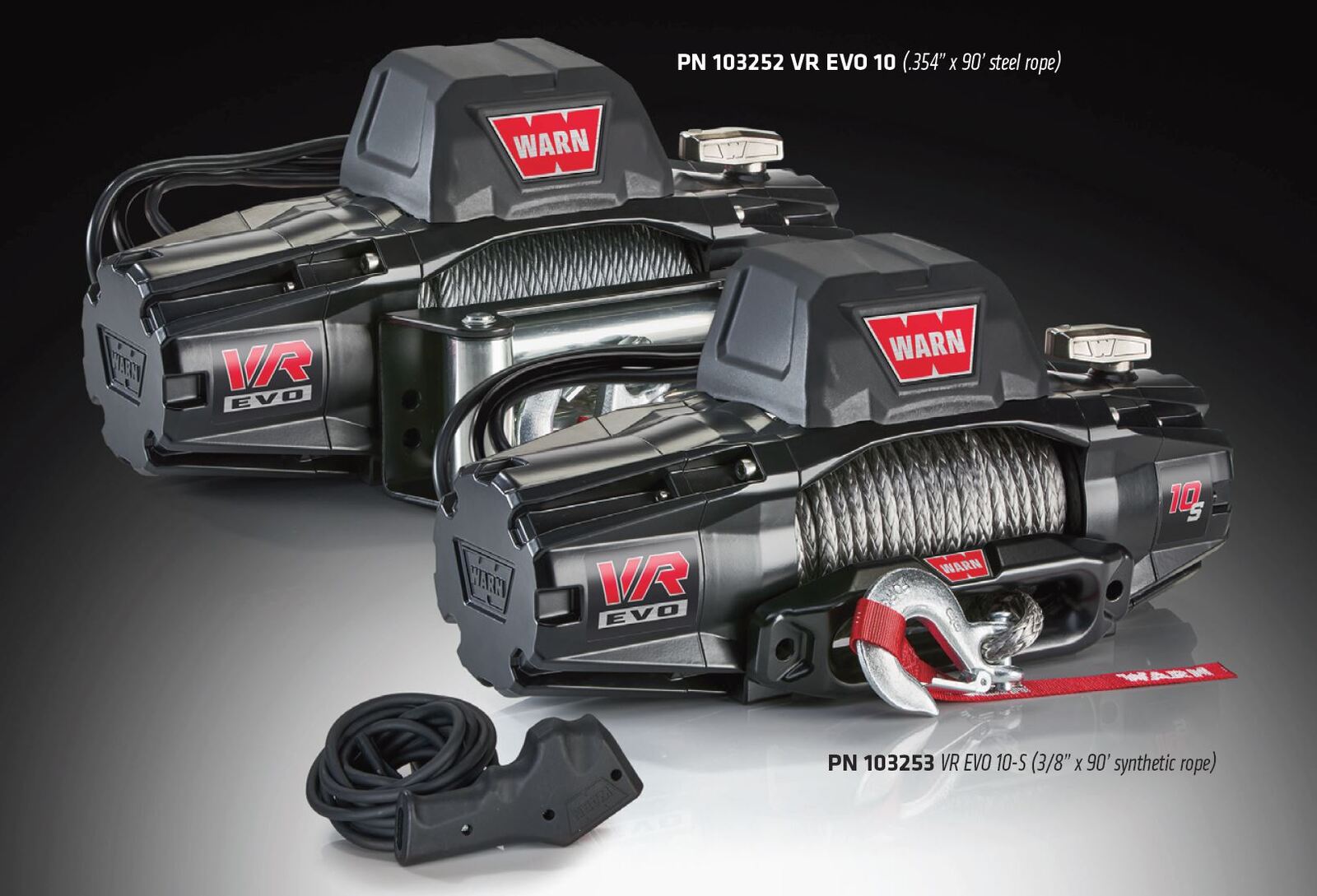

Winch Model: VR EVO 10, VR EVO 10–S
Parts Numbers: 103252 (VR EVO 10), 103253 (VR EVO 10-S) Rated Line Pull: 10000 lbs. (4536 kg)
Motor: 12V DC, series wound
Electrical Controls: Albright Contactor
Remote Control: 2-in-1 plug-in remote
with wireless capability and 11.5' (3.5m) lead
Gear Train: 3-stage planetary
Gear Ratio: 218:1
Clutch (freespooling): Rotating ring gear clutch
Brake: Spring Brake
Drum Diameter/ Length:
Steel and Synthetic: 2.5''/9.0'' (6.73cm/23cm)
Weight:
Shipping Steel: 91.93 lbs. (41.7 kg)
Shipping Synthetic: 72.40 lbs. (32.84 kg)
Net Product Steel: 74.74 lbs. (33.9 kg)
Net Product Synthetic: 55.20 lbs. (25.04 kg)
Rope:
Steel: .354 x 90' (9mm x 27.4m)
Synthetic: 3/8" x 90' (9.5mm x 27.4m)
Fairlead: Steel: Roller

Specifications

SKU	MPWR-49074
Brand	WARN
Shipping Weight	42.0000kg
Shipping Width	0.300m
Shipping Height	0.300m
Shipping Length	0.600m
Shipping Cubic	0.054000000m3
