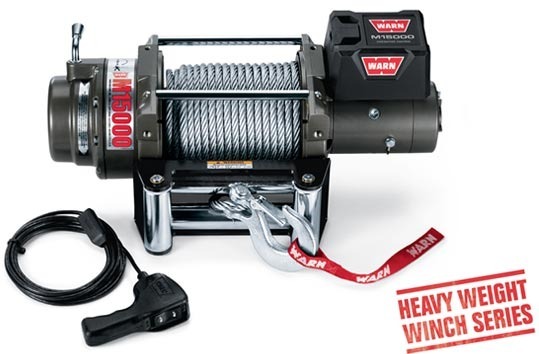

WARN M15000 12V WIRE 6800KG

WARN M15000 12V WIRE 6800KG

SKU: MPWR-17034

$4,229.10 RRP $4,699.00

Description

A heavy-duty 15,000 lb. capacity winch with a 4.6hp series wound motor. Direct drive cone braking system. Control pack is designed for clearance and ease of access. Comes with 90" of 7/16" wire rope.

High strength carrier plates are designed to handle heavy gear train stresses

Series-wound, high-speed motor provides fast line speed and strong pulls

Brake provides superior control while winching

Remote-mount control box allows for various mounting options

Durable 3-stage planetary geartrain for smooth, reliable, operation

Remote control with 12' (3.7m) lead

Chip-resistant powder-coated finish

90' of 7/16" (27m of 11mm) diameter wire rope

SPECS:

Rated Line Pull: 15,000 lbs. (6804 kgs) single-line

Motor: Series Wound, 12V 4.6 hp, 24V 2.5 hp

Electrical controls: Contactor

Remote Control: Remote switch, 12 ft (3.7m) lead

Geartrain: 3-Stage Planetary

Gear ratio: 315:1

Clutch (freespooling): Rotating Ring Gear

Brake: Automatic mechanical cone

Drum diameter/Length: 3.5 in /8.2 in (9cm/21cm)

Weight: 136 lbs. (62kgs.)

Wire rope: 90 ft, 7/16 in (27m, 11mm) diameter

Fairlead: Roller

Recommended Battery: 650 CCA minimum for winching

Battery leads: 2 gauge, 72 in (1.83m)

Finish: Argent Gray Powder Coat

Features

A heavy-duty 15,000 lb. capacity winch with a 4.6hp series wound motor. Direct drive cone braking system. Control pack is designed for clearance and ease of access. Comes with 90" of 7/16" wire rope.

High strength carrier plates are designed to handle heavy gear train stresses

Series-wound, high-speed motor provides fast line speed and strong pulls

Brake provides superior control while winching

Remote-mount control box allows for various mounting options

Durable 3-stage planetary geartrain for smooth, reliable, operation

Remote control with 12' (3.7m) lead

Chip-resistant powder-coated finish

90' of 7/16" (27m of 11mm) diameter wire rope

SPECS:

Rated Line Pull: 15,000 lbs. (6804 kgs) single-line

Motor: Series Wound, 12V 4.6 hp, 24V 2.5 hp

Electrical controls: Contactor

Remote Control: Remote switch, 12 ft (3.7m) lead

Geartrain: 3-Stage Planetary

Gear ratio: 315:1

Clutch (freespooling): Rotating Ring Gear

Brake: Automatic mechanical cone

Drum diameter/Length: 3.5 in /8.2 in (9cm/21cm)

Weight: 136 lbs. (62kgs.)

Wire rope: 90 ft, 7/16 in (27m, 11mm) diameter

Fairlead: Roller

Recommended Battery: 650 CCA minimum for winching

Battery leads: 2 gauge, 72 in (1.83m)

Finish: Argent Gray Powder Coat

Specifications

SKU	MPWR-17034
Brand	WARN
Shipping Weight	63.0000kg
Shipping Width	0.210m
Shipping Height	0.470m
Shipping Length	0.650m
Unit Of Measure	each
