WARN XD9000S 12V SYNTHETIC ROPE 4100KG

SKU: MPWR-17022

$3,239.10 RRP $3,599.00

Description

A durable 9,000 lb. winch with a compact body and separate control pack that allows you to use it in tight spaces. Comes with 100? of 5/16? wire rope. Backed by the Warn Limited Lifetime Warranty.. Long time best selling winch now with WARN Spydura synthetic rope

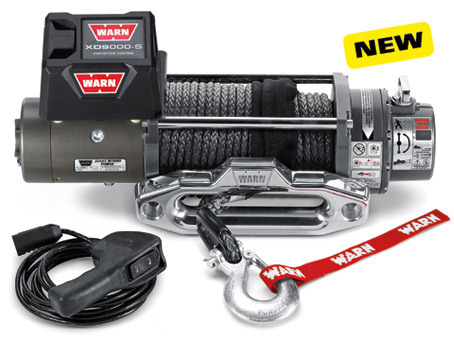

Comes with 80 ft. of 3/8" (24.38m of 9.5mm) WARN Spydura synthetic rope, hook, remote control on 12' (3.7m) lead and polished aluminum hawse fairlead

Series-wound, high-speed motor provides fast line speed and strong pulls

Low-profile design and separate control box allows for a wide range of mounting options

Next-generation contactor control pack delivers long duty cycles and exceptional durability

Durable 3-stage planetary geartrain for smooth, reliable, operation

Exclusive brake design provides superior control while winching

Newly designed hand-held remote control

Chip-resistant, powder-coated finish

SPECS:

Rated line pull: 9,000 lbs., (4080 kg) single-line

Motor: Series Wound

Electrical controls: Contactor

Remote Control: Remote switch 12' (3.7m) lead

Geartrain: 3-Stage Planetary

Gear ratio: 156:1

Clutch (freespooling): Sliding Ring Gear

Brake: Automatic Direct Drive Cone

Drum diameter/Length: 2.5"/9.0" (6.4cm/23cm)

Weight: 59 lbs. (26.8 kg)

Synthetic Rope: 80', 3/8" diameter (24.38m, 9.5mm diam.)

Fairlead: Polished Aluminum Hawse

Recommended Battery: 650 CCA minimum for winching

Battery leads: 2 gauge, 72" (1.83m)

Finish: Argent Gray Powder Coat

Winch Dimensions: 21.8" L. x 6.3" D. x 7.6 H.
(555mm L. x 160mm D. x 193mm H.)
