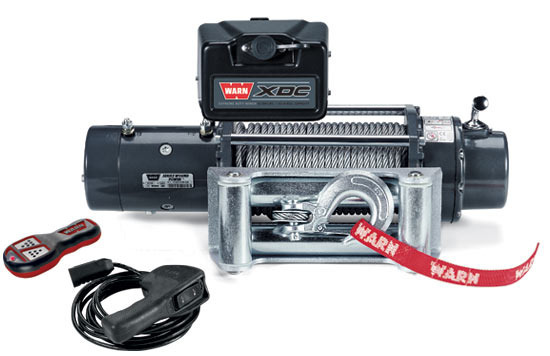

WARN XDC 9500 12V WIRE 4310KG WINCH

WARN XDC 9500 12V WIRE 4310KG WINCH

SKU: MPWR-16981

$2,969.10 RRP $3,299.00

Description

The fast, powerful XDC winch is designed for the serious off-roader who demands a winch that will perform under the most extreme conditions in the world. It has a compact shape to fit a wide-variety of bumpers. A 9,500 lb. (4,310 kg.) capacity rating and an extreme duty cycle deliver long, efficient pulls. Additionally, the XDC features a thermometric protection device to ensure long motor life by suspending winch operation if the motor's temperature becomes elevated beyond its normal operating range.



Series wound winch motor is strong and reliable



Extreme-duty winch sealing.

Enables superior water resistance

Exclusive brake design.

Provides superior operator control when winching

Extended-duty control pack delivers long duty cycle to help you tackle the most demanding pulls

3-Stage planetary geartrain. Proven to be the most reliable efficient and durable design

Remote-mount control box allows for various mounting options

Includes both corded and wireless winch controls

High gloss, chip-resistant powder coat finish.

Provides superior corrosion resistance 100" (30m) of steel

SPECS:

Motor: 12V Gen II, Series Wound

Electrical controls: Contactor

Remote controls: Remote switch with 12' (3.7m) lead, hand-held wireless

Geartrain: 3-stage planetary

Clutch (freespooling): Sliding ring gear

Brake: Automatic direct drive cone

Rope: Steel - 100', 5/16" diameter (30m, 8mm diam.)

Fairlead: PN 74700, roller fairlead

Recommended battery: 650 CCA minimum for winching

Battery leads: 2 gauge, 72" (1.83m)

Finish: Chromate with high-gloss dark-gray powder coat

Drum diameter/Length: 2.5"/9.0" (6.4cm/23cm)

Weight: 87.0 lbs. (39.5 kgs.)

Winch Dimensions: 21.8" L. x 6.3" D. x 7.6" H.
(555mm L. x 160mm D. x 193mm H.)

Features

The fast, powerful XDC winch is designed for the serious off-roader who demands a winch that will perform under the most extreme conditions in the world. It has a compact shape to fit a wide-variety of bumpers. A 9,500 lb. (4,310 kg.) capacity rating and an extreme duty cycle deliver long, efficient pulls. Additionally, the XDC features a thermometric protection device to ensure long motor life by suspending winch operation if the motor’s temperature becomes elevated beyond its normal operating range.



Series wound winch motor is strong and reliable



Extreme-duty winch sealing.

Enables superior water resistance

Exclusive brake design.

Provides superior operator control when winching

Extended-duty control pack delivers long duty cycle to help you tackle the most demanding pulls

3-Stage planetary geartrain. Proven to be the most reliable efficient and durable design

Remote-mount control box allows for various mounting options

Includes both corded and wireless winch controls

High gloss, chip-resistant powder coat finish.

Provides superior corrosion resistance 100" (30m) of steel

SPECS:

Motor: 12V Gen II, Series Wound

Electrical controls: Contactor

Remote controls: Remote switch with 12' (3.7m) lead, hand-held wireless

Geartrain: 3-stage planetary

Clutch (freespooling): Sliding ring gear

Brake: Automatic direct drive cone

Rope: Steel - 100', 5/16" diameter (30m, 8mm diam.)

Fairlead: PN 74700, roller fairlead

Recommended battery: 650 CCA minimum for winching

Battery leads: 2 gauge, 72" (1.83m)

Finish: Chromate with high-gloss dark-gray powder coat

Drum diameter/Length: 2.5"/9.0" (6.4cm/23cm)

Weight: 87.0 lbs. (39.5 kgs.)

Winch Dimensions: 21.8" L. x 6.3" D. x 7.6" H.
(555mm L. x 160mm D. x 193mm H.)

Specifications

SKU MPWR-16981
Brand WARN
Shipping Weight 40.0000kg
Shipping Width 0.210m
Shipping Height 0.470m
Shipping Length 0.650m
Unit Of Measure each
